Lightweight Folding Shutter Door Fast 1.5mm PVC Rolling Shutter
Specifications:
Technical Parameter for speed door
Max Size:8000mm(W)*8000mm(H)
Opening Speed:0.8m/s
Closing Speed:0.6m/s
Wind load Max:28 m/s
Mechanical Unit
Frame:304 Stainless Steel/Aluminum
Thickness of frame:2.0mm Stainless Steel/Galvanized Steel
Thickness of shaft cover:1.5mm 304 Stainless Steel/Galvanized Steel
Motor cover:Yes
Frame Size:200mm*200mm
Control Unit
Control system:
- S150 FU Micro-processor
- English Man-Machine Interface
- Self Trouble-Shooting Recognizing system
- Bigger LED Screen
Control Box Size:320 X 400 X 210 mm
Driving System
Feature:Absolutely Encoder
Driving Unit Brand:ABB Motor
Driving Unit Brand:Yaskawa Frequent Convert
Activation System
Open and Close the door:
- Radar
- Induction Loop
- Remote
- Card Sensor
- Pull Cord
- Push Button
- Touching Panel for Cleaning Room
- Central-Computer Controlling
Safety System
Safe Equipment:
- Beep
- Anti-wind Bar
- Traffic Light
- Wireless safety Edge
- Built-in Photo Cell
- Emergency Handle
- Shoulder Protection
Main feature:

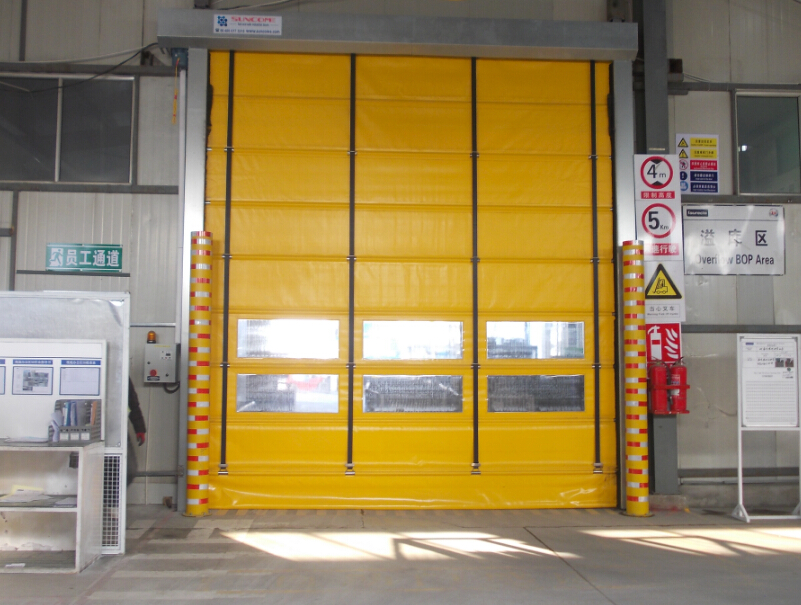

H5000 high speed stack door is designed for exterior application with larger size in wind load areas. Over 500 timesvertical folding operations in a day will avoid the defect of traditional
industrial doors. The stronger horizontal wind-resistance bar ensures high performance of the door.It can be collected totally to save space and keep the surrounding clean.
Curtain Color | Grey, White,Blue,Yellow |
Anti wind bar | anti wind-pipe at high density stacking |
Power supply | AC 220V-240V, Single-Three Phrase, 50HZ |
Temperature | -7 to 65 Celsius degree |
Normal Working | -5 to 65 Celsius degree |
Standard Motor Position | Left |
Installation Base | Concrete,Panel, Brick,Steel Structure. |
Installation Space | ≥600mm above the door
≥600mm for motor side
≥200mm for non-motor side
≥800mm in front of the door |
Using Area | For exterior doors with big size |
Why choose us?
- CE Certification: patent number--2012204951286;201220495059
- ISO NO: 00913Q12336ROS
- Customized products for clients
- Designed for the long term, high frequent operating with reasonable
price
- High quality and high performance.
- Pofessional researching and developing innovation on products.
