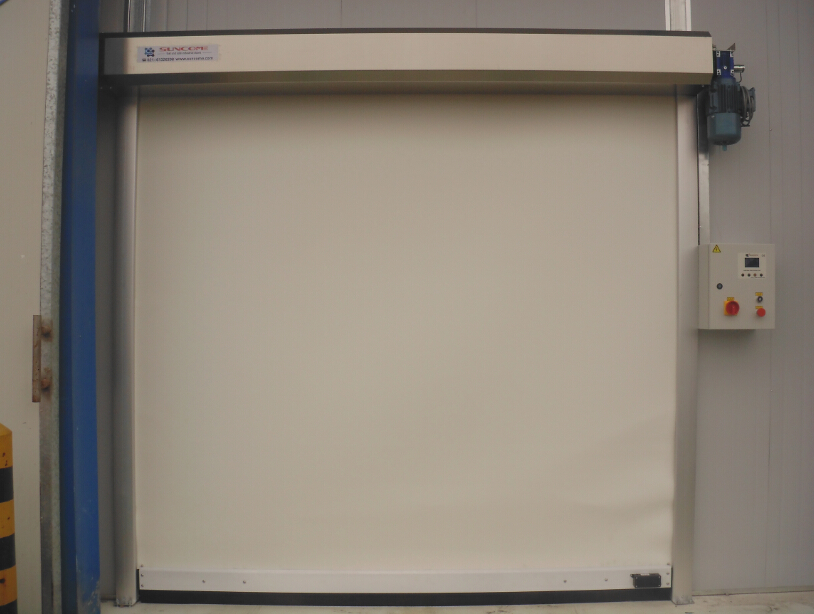

AC 220V-240V High Speed Roll Up Door , Metal Roll Up Garage Doors
Main feature:
In the logistics process of the protection of the production
environment and safety or the passageway
in the modern workhouse and architecture, H-1000 high speed door is
the best solution to meet the demand.
- Smooth operating during the whole processing.
- More durable used by more thicker curtain weaven fiber .
- Elegent appreance.
- Faster speed thanSuncome Brand H-2000& H-3000
Curtain Color | Grey, White,Red |
Anti wind bar | No anti wind bar |
Power supply | AC 220V-240V, Single-Three Phrase, 50HZ |
Temperature | -7 to 65 Celsius degree |
Normal Working | -5 to 65 Celsius degree |
Standard Motor Position | Left |
Installation Base | Concrete,Panel, Brick,Steel Structure. |
Installation Space | ≥600mm above the door ≥600mm for motor side ≥200mm for non-motor side ≥800mm in front of the door |
Using Area | For Production Line |
1) Special design for factory’s outside application
2) high frequent using of the outside logistics demands.
3) High speed auto opening and closing for the logistics
transferring.
4) Quick reaction by the controlling of the activation way.
5) Auto time-delayed function adjustment based on good transferring
time.
6) Sustained innovation on the product.
7) Energy saving for the temperature difference.
8) High efficient for the door operation.
9) Adopting “Absolutely Encoder” to avoid the top and end position
readjusting after the power off.
10) Unique Man-Machine Interface to ensure the smooth operation.
Error shooting function is also a tool for engineer to find the key
of problem shortly.
11) Door controlling system is easy to meet the different demands.
12) Standard activation terminals are equipped with the control
system to avoid trouble when the door’s opening and closing way
changed.
13) Unique design and innovation on “Main Board”.
14) One-Key push button to Up and Down the door manually.
15) RED EMERGENCY STOP push button for “STOP” function in Emergent
status.
16) High Frequent Motor with auto-brake function.
17) Anti-rusty 304 stainless steel suits for the cleaning
environment application.
18) Unique inner Nylon molded frame and double lines brushes will
avoid dust go through the door.
19) More wider dimension shaft to ensure the door to roll up
stably.
20) With stronger anti-load wind bar for wind load.
21) Wireless safety edge for shoulder protection during the door
operation.
23) Viewing windows or transparent stripe will provide the
convenience during the door operation.
24) Build-in Photo cell provide the unnecessary opening and closing
caused by the wind pressure.
25) IP 65 Control box.
26) Locker equipped with main Switch for unnecessary opening of the
control box.
27) Emergency handle to meet the power off status.
28) Free maintenance on the door.
Technical Parameter for speed door
Max Size: 3500mm(W)*3500mm(H)
Opening Speed: 1.5m/s
Closing Speed: 1.0m/s
Wind load Max: 10m/s
Mechanical Unit
Frame: 304 Stainless Steel/Aluminum
Thickness of frame: 2.0mm Stainless Steel/Galvanized Steel
Thickness of shaft cover: 1.5mm 304 Stainless Steel/Galvanized
Steel
Motor cover: 100mm*60mm
Control Unit
Control system:
- S150 FU Micro-processor
- English Man-Machine Interface
- Self Trouble-Shooting Recognizing system
- Bigger LED Screen
Control Box Size: 320 X 400 X 210 mm
Driving System
Feature: Absolutely Encoder
Driving Unit Brand: ABB Motor
Driving Unit Brand: Yaskawa Frequent Convert
Activation System
Open and Close the door:
- Radar
- Induction Loop
- Remote
- Card Sensor
- Pull Cord
- Push Button
- Touching Panel for Cleaning Room
- Central-Computer Controlling
Safety System
Safe Equipment:
- Beep
- Anti-wind Bar
- Traffic Light
- Wireless safety Edge
- Built-in Photo Cell
- Emergency Handle
- Shoulder Protection
