Galvanized Steel High Speed Roll Up Door With Shoulder Protection
The charactor of Automatic and High Performance Speed Door:

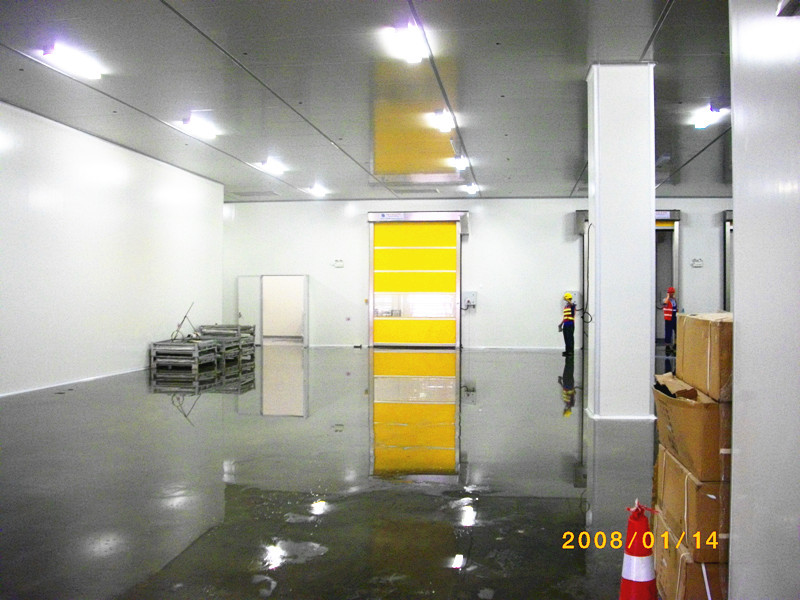

Automatic and High Performance Speed Door is the solution to the
high-level clean environment which needs prevent dust and
anti-bacteria, applied in the busy passageway area with high
clearness demands,strong wind-resistance,especially for the
food,pharmacy, and fine machining industry.
1) Safe and stable operation during the whole processing.
2) More durable by the unique and professional curtain material.
3) More beautiful/elegent appearance.
4) Anti-bacteria protection system.
5) Our owned Trade - Mark and professional developing & researching
team.
6) Sustained innovation on the product.
Mechanical Unit
Frame:Galvanized steel
Inner Frame: Galvanized steel
Thickness of shaft cover:
Motor cover:Yes
Frame Size:120mm*120mm
Technical Parameter for speed door
Max Size:4000mm(W)*4000mm(H)
Opening Speed:1.2m/s
Closing Speed:0.6m/s
Wind load Max:12m/s
Why Choose us?
- CE Certification: patent number--2012204951286;201220495059
- ISO NO: 00913Q12336ROS
- Customized products for clients
- Designed for the long term, high frequent operating with reasonable
price
- High quality and high performance.
- Pofessional researching and developing innovation on products
Main feature:
H2008 durable high speed door is very suitable for the demands of
general frequent using in exterior
wind load area.
Further, with the optional stronger wind-bar, it can meet the
demands of exterior application.
Curtain Color | Blue, Orange,Yellow, Red, Grey. |
Viewing Window | Full transparent 1.5mm PVC window. |
Power supply | AC 220V - 240V,Single- 3 Phrase, 50HZ |
Temperature | -7 to 65 Celsius degree |
Normal Working | -5 to 65 Celsius degree |
Standard Motor Position | Left |
Installation Base | Concrete,Panel, Brick,Steel Structure. |
Installation Space | ≥600mm above the door
≥600mm for motor side
≥200mm for non-motor side
≥800mm in front of the door |
Specifications:
Control Unit
Control system
- S150 FU Micro-processor
- English Man-Machine Interface
- Self Trouble-Shooting Recognizing system
- Bigger LED Screen
Control Box Size:320 X 400 X 210 mm
Driving System
Feature:Absolutely Encoder
Driving Unit Brand:ABB Motor / Yaskawa Frequent Convert
Activation System
Open and Close the door:
- Radar
- Induction Loop
- Remote
- Card Sensor
- Pull Cord
- Push Button
- Touching Panel for Cleaning Room
- Central-Computer Controlling
Safety System
Safe Equipment:
- Beep
- Anti-wind Bar
- Traffic Light
- Wireless safety Edge
- Built-in Photo Cell
- Emergency Handle
- Shoulder Protection
