380V 25000 Capacity Hydraulic Smart And Safe Design Dock Leveler
Hydraulic dock leveler is a very professional model during the
docking system, it is with a very low maintenance during the
operation.
Customer can choose based on the capacity and normal& standard is
25000 LBS for internet standard container.
If in some special demands, we will enhance the steel structure to
hold the heavy duty also with double cycles for supporting
together.
We equipped with the imported Solenoid valve to ensure its
operation.
Still, some special status, we can update the whole dock leveler in
Hot dip Galvanized Skill to ensure the dock leveler in a good
performance.
If in a large Quantity, we can choose Robert for welding to finish
in a short lead time.
Specifications:
Technical Parameter | Max Size | 8Ft(L)*10Ft(W) |
Lifting height | 300mm above the dock leveler |
Down height | 300mm below the dock leveler |
Capacity | 25000-45000LBS |
Control Unit | Control system | Push Button |
Driving System | Hydraulic system | High performance hydraulic system |
Driving Unit Brand | HaiPu Motor |
Galvanized Skill | For the whole set | Supporting |
Forklift Hole | For the structure | Supporting |
Safety protection | For the structure | Yes with the full- foot protection |
Sealing Function | For the structure | Supporting seal or brush |
Dock Plate thickness | For the structure | 8 MM Non-slip Q 235 Steel |
Cylindar | For driving system | 1-2 units |
Safety System | Safe Equipment | Free bumpers |
With Emergency Push button |
Hold -down function |
High volume hydraulic driving |
Backing -wrenching pulling of chains |
Sealing system | Dock seal, dock shelter and vehicle restraint. |
Curtain Color | Grey, Green or as RAL |
Maintenance | Supporting with Maintenance bar |
Warranty | 1 year Free warranty for the whole dock leveler |
More Details:
- Power supply: AC 380V, Three Phrase, 60 HZ, 1.1KW
- Temperature: -30 to 65 Celsius degree
- Standard operation: Push button

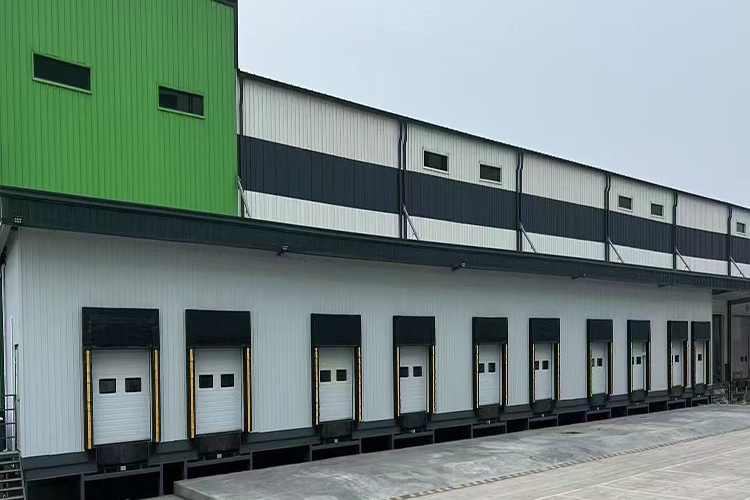

- Using Area: Loading and unloading bay area
- Environmental protection: Yes
- Low maintenance: Yes
Description:
1) Special design for factory’s outside/exterior application.
2) Frequent using/cycles during the loading and unloading.
3) Fine steel plate frame
4) Safe design&durable operation.
5) Structural safety legs supporting below-dock loading.
6) Integral maintenance structure for deck support
7) High volume&low pressure hydraulic activation system.
8) Traditional hydraulic way is a common tool for heavy lifting.
9) Environment friendly.
10) Single button operating system.
