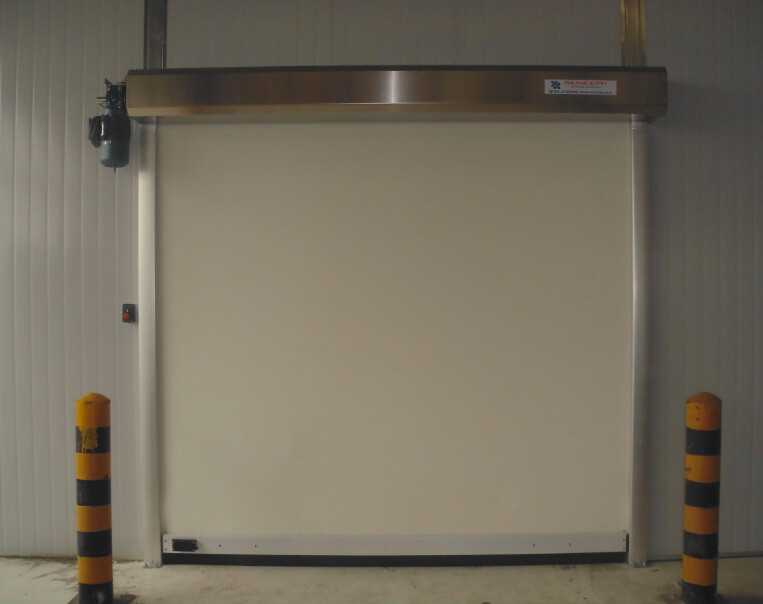

High Speed Anti-electrostatic Fabric Roll up Door, High Frequency
Smooth Open
Description:
With more than ten years of rich experience, Suncome, a combination
supplier of special industrial doors and loading/unloading system
as well as an entrepreneur for the solution of logistics system,is
the best choice of high-efficiency and energy savings in modern
architectures and factories.
Our products are widely used in many fields such as food, pharmacy,
chemical industries, electronics, auto manufacturers, precision
machineries, clean rooms, refrigeration industries, intelligence
building, automatic parking system, integrate with Europe advanced
technology, notion, especially with high quality, affordable price,
safety and durability.
We boast professional sales engineers, installation teams and
after-sales service personnel who can provide our clients with
customized service .
Automatic and High Performance Speed Door is the solution to the
high-level clean environment which needs prevent dust and
anti-bacteria, applied in the busy passageway area with high
clearness demands,strong wind-resistance,especially for the
food,pharmacy, and fine machining industry.
Specifications:
Curtain Color | Grey, White,Red |
Anti wind bar | No anti wind bar |
Power supply | AC 220V-240V, Single-Three Phrase, 50HZ |
Temperature | -7 to 65 Celsius degree |
Normal Working | -5 to 65 Celsius degree |
Standard Motor Position | Left |
Installation Base | Concrete,Panel, Brick,Steel Structure. |
Installation Space | ≥600mm above the door ≥600mm for motor side ≥200mm for non-motor side ≥800mm in front of the door |
Using Area | For Production Line |
|
|
Technical Parameter for speed door
Max Size:3500mm(W)*3500mm(H)
Opening Speed:1.5m/s
Closing Speed:1.0m/s
Wind load Max:10m/s
Mechanical Unit
Frame:304 Stainless Steel/Aluminum
Thickness of frame:2.0mm Stainless Steel/Galvanized Steel
Thickness of shaft cover:1.5mm 304 Stainless Steel/Galvanized Steel
Motor cover:Yes
Frame Size:100mm*60mm
Control Unit
Control system
- S150 FU Micro-processor
- English Man-Machine Interface
- Self Trouble-Shooting Recognizing system
- Bigger LED Screen
Control Box Size:320 X 400 X 210 mm
Driving System
Feature:Absolutely Encoder
Driving Unit Brand:ABB Motor / Yaskawa Frequent Convert
Activation System
Open and Close the door:
- Radar
- Induction Loop
- Remote
- Card Sensor
- Pull Cord
- Push Button
- Touching Panel for Cleaning Room
- Central-Computer Controlling
Safety System
Safe Equipment:
- Beep
- Anti-wind Bar
- Traffic Light
- Wireless safety Edge
- Built-in Photo Cell
- Emergency Handle
- Shoulder Protection
